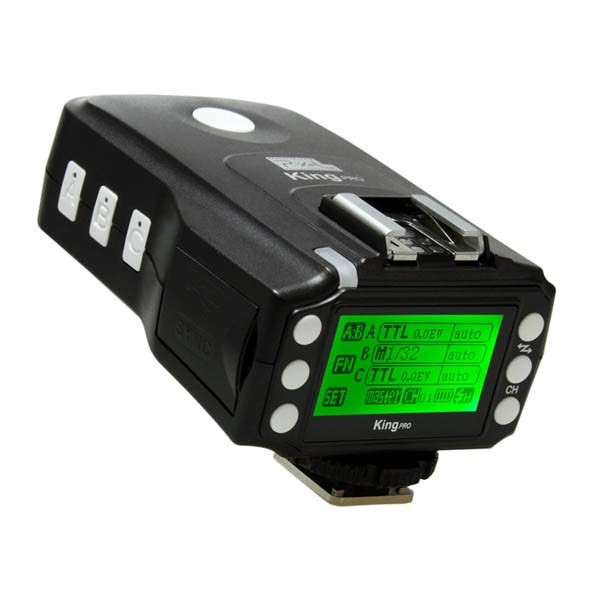

Pixel King Pro Canon
Catatan :
| Garansi | 3 bulan |
| Frekwensi | 2.4 GHz |
| Range | 300m |
| Channel | 4 |
| Group | ✔ |
| TTL | ✔ |
| TTL Pass-Thru | ✔ |
| HSS | ✔ |
| Wireless Shutter | ✔ |
| Free shutter cord | ✘ |
| Free studio cord | ✘ |
| Spesifikasi | TX | RX |
| Power | 2x AA | 2x AA |
| Metal Foot | ✔ | ✘ |
| Foot Locking | thumb screw | thumb screw |
| AF Assist Beam | ✘ | ✘ |
| PC Port | ✔ | ✔ |
| 2.5mm Port | ✘ | ✘ |
| 3.5mm Port | ✘ | ✘ |
| Umbrella Holder | - | ✘ |
| Test Button | ✔ | ✔ |
| DC Adapter Port | - | ✘ |
| USB | ✔ | ✔ |
Catatan :
- Firmware dapat diupgrade
Disarankan untuk segera upgrade ke firmware terbaru - Jumlah channel ada 4
Tx dan Rx unit hanya bisa join di 1 channel saja - Jumlah group ada 3 (A/B/C)
Tx unit bisa join & kontrol 3 group, sedang Rx unit hanya bisa join di 1 group saja - Hot shoe di Tx unit sudah berfungsi (TTL Pass-thru)
- Wireless Multi tidak jalan
FEC di TTL, FEB, HSS, Rear Curtain, adjust Manual Power : semua jalan - Tidak ada AF Assist Beam dari Tx unit
Di King, dulu malah ada - AF Assist Beam dari speedlite yang nancap di Rx unit fungsi
Tested di 580EX II, tested tidak jalan di jajaran YongNuo (468-II, 565EX, 568EX) - Tx unit King Pro adalah transceiver
Mode Master, dia jadi transmitter. Mode Slave dia berubah jadi receiver - Tx unit King Pro bisa memicu Rx unit King dan transceiver Opas
Opas akan terpicu manual, walau masuk di group TTL. Jika HSS, hasil Opas akan gelap. Rx unit King tetap bisa TTL dan HSS. -
Kabel Wireless Shutter-nya khusus type USB, belum tersedia
| Opas | King | King Pro |
| 1 | L1 | 1 |
| 2 | L2 | 2 |
| 3 | L3 | 3 |
| 4 | L2+L3 | 4 |
| N/A | L1+L2 | 5 |
| N/A | L1+L3 | 6 |
| N/A | L1+L2+L3 | 7 |
| N/A | N/A | 8 |
| N/A | N/A | 9 |
| N/A | N/A | 10 |
| N/A | N/A | 11 |
| N/A | N/A | 12 |
| N/A | N/A | 13 |
| N/A | N/A | 14 |
| N/A | N/A | 15 |
| N/A | N/A | Auto |
- Transceiver King Pro bisa memicu Rx King (HSS) dan Rx Opas (no HSS, akan gelap).
- Transmitter King bisa memicu Rx Opas (no HSS; hasil gelap).
- Kebalikannya tidak akan bisa.
- Transmitter Opas tidak bisa memicu Rx King dan Rx King Pro
- Transmitter King tidak bisa memicu Rx King Pro
